Fast Emulator

BioSNICAR ships a pre-built neural-network emulator that reproduces the forward model at ~50,000x the speed (~1 µs vs ~50 ms per evaluation). It makes optimisation, MCMC, and real-time exploration practical — tasks that would take hours with the full radiative transfer solver finish in seconds.

We’ve also made it as easy as possible to build your own. Want a smaller emulator targeting a narrow parameter range for a specific field campaign? A larger one covering extreme impurity concentrations? A snow-only variant with 3 free parameters? One call to Emulator.build() handles the sampling, training, and export.

Use the default emulator

The repository includes an 8-parameter general-purpose emulator at data/emulators/glacier_ice_8_param_default.npz, trained on 50,000 Latin hypercube samples of solid glacier ice. It covers the most common use cases out of the box:

from biosnicar.emulator import Emulator
from biosnicar import run_emulator

# Load the pre-built emulator
emu = Emulator.load("data/emulators/glacier_ice_8_param_default.npz")

# Predict spectral albedo (~1 µs)
albedo = emu.predict(
    rds=1000, rho=600, black_carbon=5000, snow_algae=0, dust=1000,
    glacier_algae=50000, direct=1, solzen=50,
)

# Or get a full Outputs object (BBA, BBAVIS, BBANIR, .to_platform())
outputs = run_emulator(
    emu, rds=1000, rho=600, black_carbon=5000, snow_algae=0, dust=1000,
    glacier_algae=50000, direct=1, solzen=50,
)
print(outputs.BBA)
outputs.to_platform("sentinel2")

Default parameter ranges

All 8 parameters must be provided when calling predict(). The emulator clips inputs to training bounds and warns if out of range.

Build your own

The default emulator is general-purpose, but you can do better for a specific task. Building a custom emulator is a single function call:

from biosnicar.emulator import Emulator

# Focused emulator: 4 free parameters, narrow ranges, fixed illumination
emu = Emulator.build(
    params={
        "rds": (100, 3000),
        "rho": (300, 700),
        "black_carbon": (0, 50000),
        "glacier_algae": (0, 200000),
    },
    n_samples=5000,
    layer_type=1,       # fixed: solid ice
    solzen=50,          # fixed
    direct=1,           # fixed
)
emu.save("my_field_campaign.npz")

Any run_model() keyword can be a free parameter (in params) or fixed (as a keyword argument). Fewer free parameters means fewer training samples needed and higher accuracy for the same build time.

Some ideas:

• Snow-only emulator — set layer_type=0, use snow-relevant rds range (50–2000 µm), fix impurities to zero
• High-impurity emulator — extend black_carbon to 100,000 ppb for heavily polluted sites
• Fixed-illumination emulator — lock solzen and direct for a specific scene, freeing up capacity for ice parameters
• Minimal 2-parameter emulator — just SSA and one impurity, for fast field retrievals with everything else known

Build time

Build time is dominated by forward model runs (~50 ms each). MLP training adds < 10 seconds.

Requires scikit-learn>=1.0 at build time. Loading a pre-built emulator requires only NumPy.

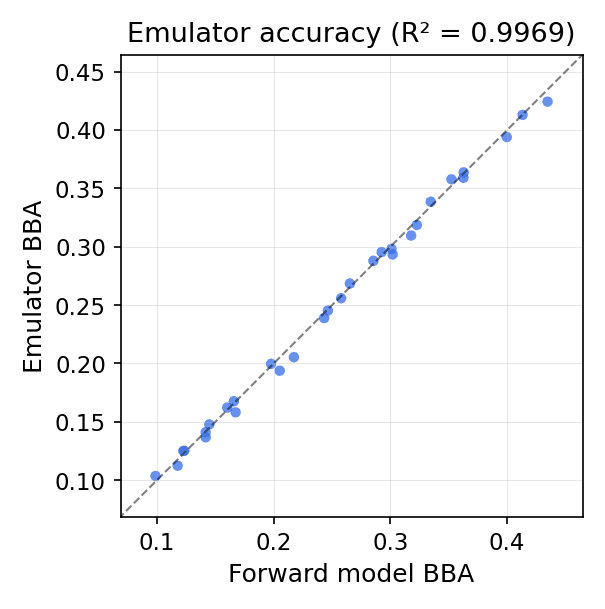

Verify accuracy

result = emu.verify(n_points=50)
print(result.summary())

verify() runs the forward model on held-out parameter sets and compares against emulator predictions, reporting MAE, max error, R², and per-point diagnostics.

Why an emulator?

The forward model takes ~50 ms per evaluation. Many important workflows require thousands to millions of evaluations:

The emulator is what makes the inverse retrieval module practical.

Accuracy

• R² > 0.999 with 5,000+ training samples
• MAE < 0.005 albedo units
• Max broadband error < 0.01

Architecture

PCA compresses the 480-band output to ~10 principal components, and a small MLP (128-128-64 neurons, ReLU) predicts these coefficients. The result is a ~150 KB .npz file — no TensorFlow, no PyTorch, no GPU. Just three matrix multiplications and a ReLU.

The .npz format is version-independent, safe to share (no pickle), and human-inspectable with np.load().

For full architecture details, see Design Rationale. For building custom emulators, see Building Emulators.
